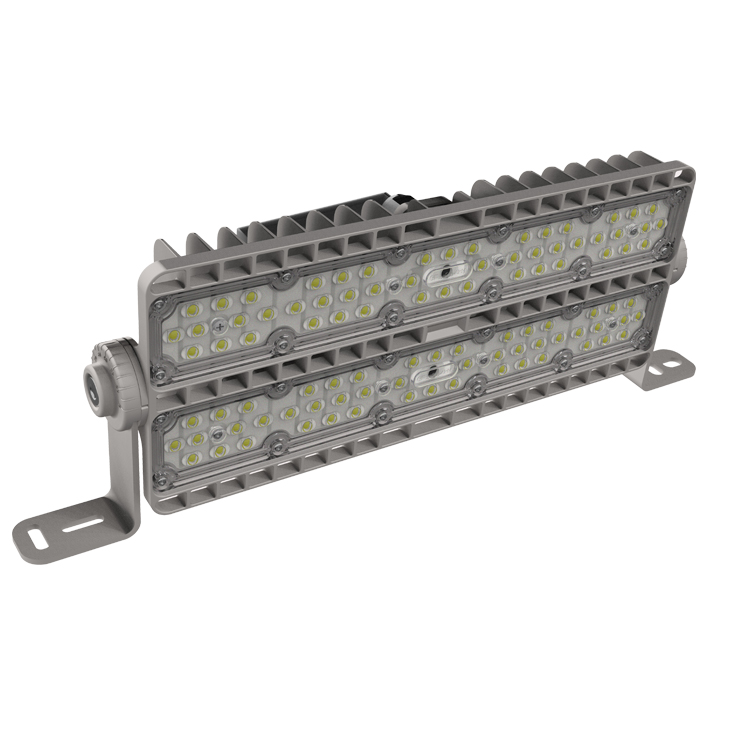

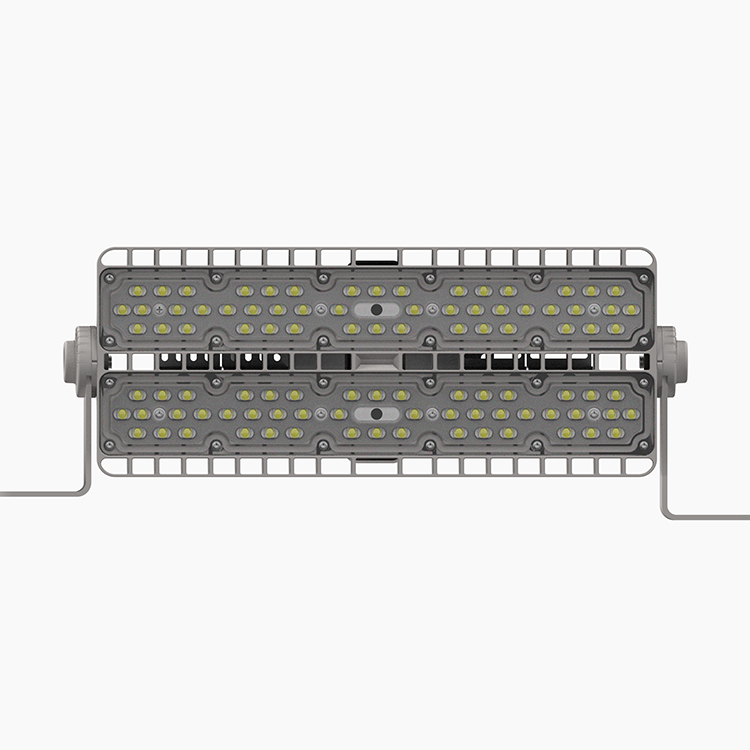

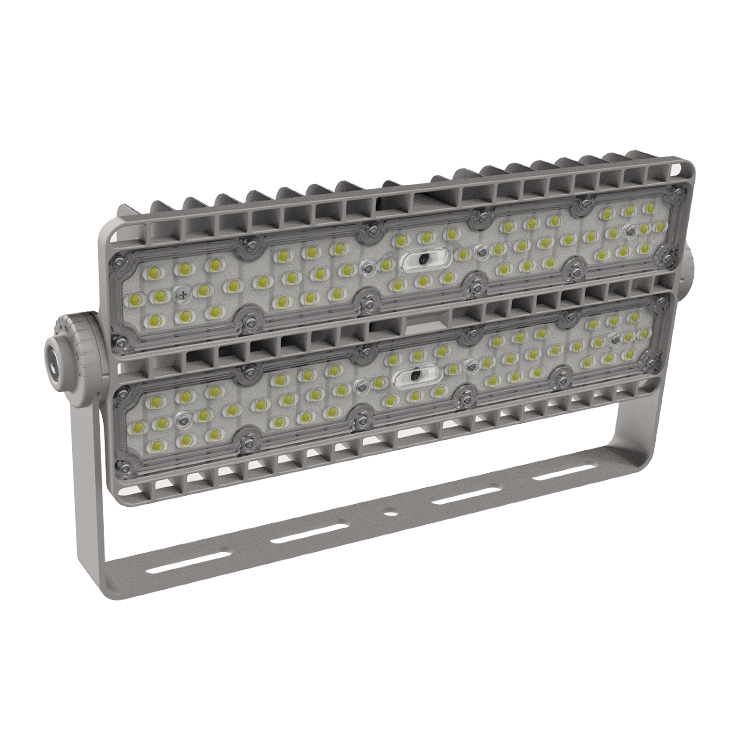

100W IP66 LED Tunnel Light
Product Specification:Product Description
| Product model | LT-S3-50W | LT-S3-100W | LT-S3-150W | |||||||||||
| Dimension | 424×110×79mm | 424×139×81mm | 424×232×81mm | |||||||||||
| Power | 50W | 100W | 150W | |||||||||||
| Luminous flux | ≥5500-7500lm ≥110-150lm/w |
≥11000-15000lm ≥110-150lm/w |
≥16500-22500lm ≥110-150lm/w |
|||||||||||
| Net weight | 2.2kg | 2.9kg | 3.6kg | |||||||||||
| Product model | LT-S3-200W | LT-S3-240W | ||||||||||||
| Dimension | 424×260×81mm | |||||||||||||
| Power | 200W | 240W | ||||||||||||
| Luminous flux | ≥22000-30000lm ≥110-150lm/w |
≥26400-36000lm ≥110-150lm/w |
||||||||||||
| Net weight | 4.4kg | 4.6kg | ||||||||||||
| Input voltage | AC100V-277V 50/60HZ | |||||||||||||
| LED type | EMC3030 | |||||||||||||
| Lens Angle | 48-in-1 lenses : 25°/30°/60°/90°/80*140°/T2M. 22-in-1 lenses : 60°/90°/60*120°/80*150°/T2M,T3M,T4M. |
|||||||||||||
| Color Temp | 6000~6500K(CW)/4000~4500K(NW)/2700~3200K(WW) | |||||||||||||
| Color renderingindex | Ra>70,Ra>80 | |||||||||||||
| Power efficiency | >90% | |||||||||||||
| Dimming | Customizable (0/1-10V dimming) | |||||||||||||
| Power factor | >0.95 | |||||||||||||
| THD | ≤15% | |||||||||||||
| Protection level | IP66 | |||||||||||||
| Working Temp | -20 ~ +45°C | |||||||||||||
| Warranty | 5 years | |||||||||||||
| Life | 50000H | |||||||||||||
| Fixture painting | Grey | |||||||||||||
| Certification | CE,ROHS | |||||||||||||
Dimension
Detalied Images
Application
