What RDM Means for Lighting Control?

Published by

RioTinto

2025-09-05

Introduction

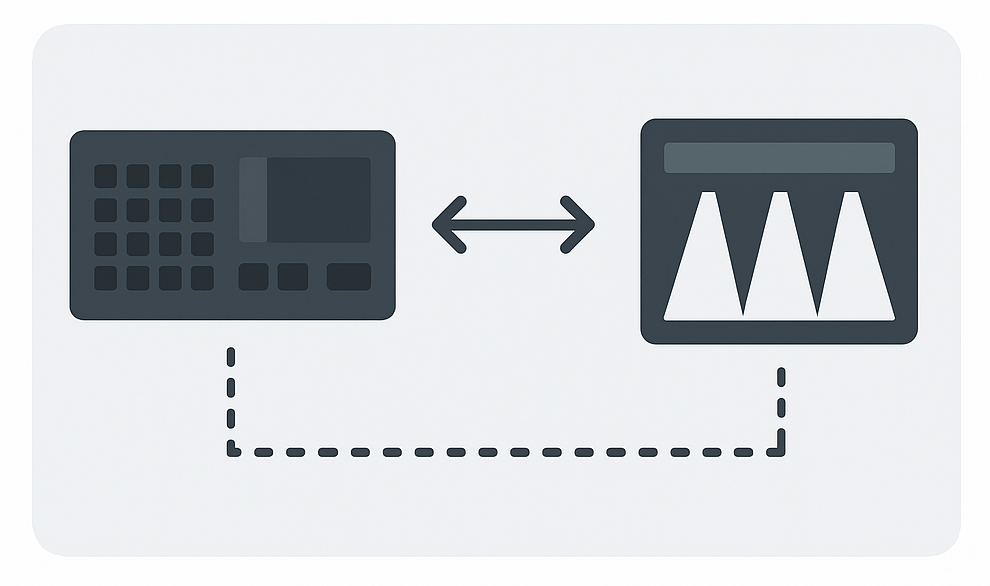

In the world of professional lighting, Remote Device Management (RDM) has become an important extension to the long-standing DMX512 protocol. While DMX provides reliable one-way communication from the controller to fixtures, RDM introduces a two-way dialogue. This enhancement may seem small at first, but in practice it has transformed how lighting systems are configured, monitored, and maintained.

What is RDM?

RDM (officially defined by the ESTA/ANSI E1.20 standard) is a protocol that allows a controller to not only send data to fixtures, but also receive information back from them—all over the same DMX wiring infrastructure.

With RDM, a lighting console or software can:

Discover connected devices automatically
Query device information (model, software version, channel count)
Adjust settings remotely (addressing, mode, dimming curves)
Monitor real-time feedback (temperature, lamp hours, error states)

Key Benefits of RDM

1. Simplified Setup

Without RDM, every DMX fixture must be manually addressed—sometimes by tiny DIP switches or menu screens on the device itself. RDM eliminates much of this hassle, allowing technicians to patch fixtures from the console. This dramatically reduces installation time and human error.

2. Real-Time Monitoring

RDM turns lighting fixtures into “smart” devices that report their status. For example:

Overheating warnings
Lamp life or LED hours
Signal quality issues
This predictive monitoring helps prevent failures during shows or events.

3. Remote Configuration

Changing modes (such as 8-bit vs. 16-bit operation) or adjusting dimmer curves can be done remotely, without climbing trusses or accessing hard-to-reach installations.

4. Reduced Maintenance Costs

Because technicians can diagnose problems from the control room, fewer service calls and physical inspections are required. This is especially valuable in architectural or outdoor projects where fixtures may be mounted high above ground or in difficult locations.

Applications of RDM

Theatrical & Concert Venues: Rapid patching and monitoring during setup and rehearsals.
Architectural Installations: Long-term health monitoring of facade lighting.
Theme Parks & Attractions: Remote oversight of large, complex lighting systems spread over wide areas.
Broadcast Studios: Ensuring fixture consistency and detecting issues before recording.

Limitations and Considerations

While powerful, RDM is not without challenges:

Compatibility: Both controllers and fixtures must support RDM.
Traffic Management: Because DMX was designed as one-way, the introduction of bidirectional traffic can sometimes cause timing issues in poorly designed systems.
Infrastructure: Not all splitters or distribution hardware support RDM pass-through.

For these reasons, integrators must ensure that the entire signal chain is RDM-compatible before relying on its features.

Conclusion

RDM has significantly expanded the capabilities of traditional DMX systems by adding intelligence, flexibility, and feedback. From reducing setup time to enabling predictive maintenance, RDM has become an indispensable tool in modern lighting control. As lighting technology continues to evolve, especially with network-based protocols such as Art-Net and sACN, RDM stands out as a practical bridge between legacy DMX wiring and the advanced needs of today’s lighting professionals.
