Guidelines and Tips for Installing LED Wall Washer Lights

Published by RioTinto 2025-04-02

Guidelines and Tips for Installing LED Wall Washer Lights



1. Measurements and Spacing

Effective installation is essential for achieving optimal lighting effects. Begin by measuring your walls and determining the number of fixtures required. Subsequently, mark the locations for each light and assess the capacity of your electrical system. It is crucial to ensure that the surface where you will mount the lights can support their weight.



Once you have measured and marked your wall, verify that the markings are appropriately spaced. Adequate spacing is vital for achieving an even distribution of light, so position the lights a few inches away from the wall, ideally between 12 to 24 inches. Additionally, ensure that the fixtures are spaced evenly apart, allowing for a distance of 24 to 36 inches between each one. This arrangement helps to avoid hot spots and guarantees consistent illumination. Be sure to test the proposed positions before finalizing the installation.

The height at which you mount the lights significantly influences the coverage area. For example, lights on eight-foot walls should be installed at a height of 6 to 7 feet. For ten-foot walls, a height of 8 to 9 feet is recommended, while taller walls may require multiple rows of lighting fixtures.



2. Wiring and Power

Ensuring safety during electrical work is crucial in the installation process. Assess your overall power requirements and verify whether your circuits can accommodate the load. Utilize the appropriate wire gauge as indicated in your instruction manual and implement safeguards against power surges.



Additionally, consider incorporating backup power systems for enhanced safety. Contemporary wall washers provide a variety of control options. Basic setups can utilize simple switches, while dimmers offer greater versatility. Some lighting fixtures are capable of color changes, and others can integrate with home automation systems. Therefore, select controls that align with your specific requirements.



3. Control Systems

Contemporary wall washer lights provide a range of control options. For straightforward installations, a standard switch is adequate. Basic models come equipped with manual dimming switches, while more sophisticated versions incorporate DMX protocol, enabling accurate management of brightness and color.

Smart control systems further improve their capabilities. WIFI-enabled fixtures can link to home automation systems, allowing for easy adjustments via mobile applications.



4. Outdoor Installation Tips

When setting up outdoor installations, it is essential to implement additional safety measures. Ensure that all connections are sealed to safeguard them from moisture. Utilizing waterproof junction boxes and installing conduits can provide further protection for the wiring. If you have ground fixtures, it may be beneficial to create drainage systems around them.



The weather significantly impacts the functionality of your lighting. Whenever feasible, position your lights beneath eaves or shaded areas. Employing rubber gaskets can enhance protection against environmental factors, ensuring a tighter seal. Additionally, angling the lights downwards can facilitate drainage and help prevent water accumulation after rainfall.



5. Maintenance and Care

Consistent maintenance will ensure that your light remains functional throughout its entire lifespan. Begin with straightforward upkeep tasks, such as cleaning the lenses monthly using a soft cloth and inspecting the connections every three months. Conduct a thorough examination to detect any loose components or connections at an early stage. If you observe any malfunctioning units, replace them without delay. Therefore, it is advisable to keep spare parts on hand for emergencies.



Additionally, be vigilant for common issues such as dim lighting and flickering. Dim lights may indicate that your fixture requires cleaning, while flickering could point to a loose wire connection. Other concerns, such as changes in color, might signal unit failure, and unusual noises could suggest loose components.

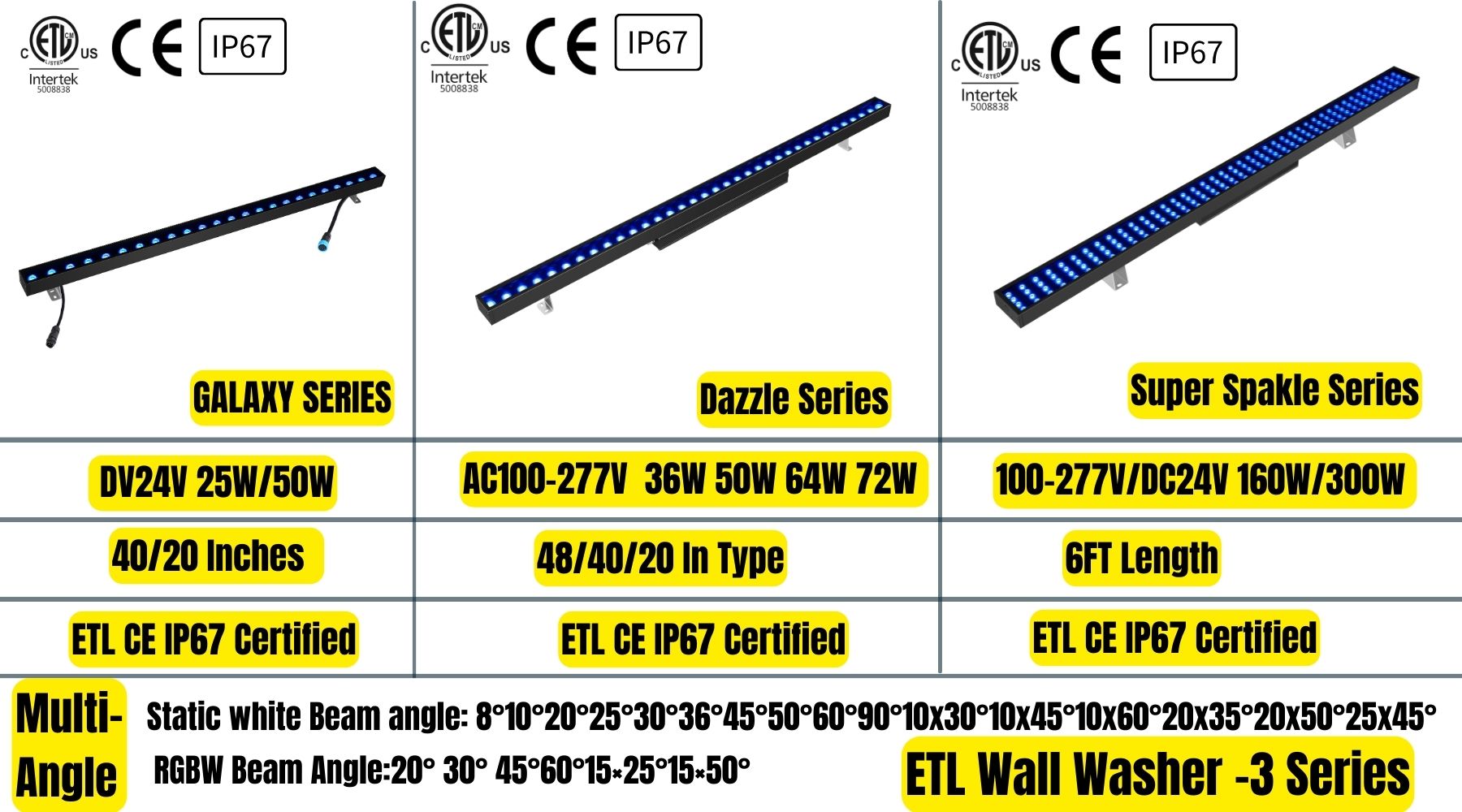

Rio Tinto ETL Listed DMX control and Wireless RGBW wall washer, RGBW LED flood light, RGBW UFO high bay and other RGBW lighting solutions will enrich your life and buildings.
