How LED Lighting IP is Tested and Why It is Important?

How is LED Lighting IP Tested?
When a light asserts that it is dustproof or water-resistant, how can you verify its claims? This is where Ingress Protection (IP) testing becomes essential. These evaluations, grounded in the IEC 60529 international standards, assess the capability of an LED light to withstand dust and water infiltration.

IP Testing for Solid Protection (First Digit)
The first digit (0-6) indicates the extent to which a light can resist solid particles such as dust and debris. The testing process is as follows:

1. IP1X (50mm object protection) – A 50mm probe (approximately the size of a hand) is utilized to ensure it cannot completely penetrate the fixture.
2. IP2X (12.5mm object protection) – A 12.5mm probe (roughly finger-sized) is employed to evaluate resistance to entry.
3. IP3X (2.5mm object protection) – A 2.5mm probe is used to confirm that small tools or wires cannot access the interior.
4. IP4X (1mm object protection) – A 1mm probe tests whether minute solid objects can infiltrate the fixture.
5. IP5X (Dust-protected) – The light is placed in a sealed dust chamber for 8 hours, with vacuum pressure applied. A small amount of dust inside is permissible, provided it does not impact performance.
6. IP6X (Dust-tight) – The light is subjected to a high-pressure vacuum test to demonstrate that no dust can enter whatsoever.
These assessments guarantee that LED fixtures can endure various environmental conditions—be it in a dusty warehouse or on a construction site.

IP Testing for Water Protection (Second Digit)
The second digit (0-9) in an IP rating indicates the degree to which a light fixture can withstand water exposure. To ensure these lights meet their specifications, they undergo stringent water-resistance evaluations. Below is an overview of these tests:

1. IPX1 (Dripping Water Test – 1mm per minute for 10 minutes)
Water drips vertically onto the fixture at a rate of 1mm per minute.

2. IPX2 (Dripping Water at 15° tilt for 10 minutes)
The fixture is inclined at a 15° angle while being subjected to dripping water—mimicking real-life scenarios such as rain on a sloped surface.

3. IPX3 (Spraying Water Test – Up to 60° Angle for 5 minutes)
Water is sprayed from an upward angle (up to 60°) to assess resistance.

4. IPX4 (Splashing Water Test – Any Direction for 10 minutes)
Water splashes from all angles, akin to rain or unintentional spills.

5. IPX5 (Water Jet Test – 12.5L/min for 3 minutes)
Low-pressure water jets (from a 6.3mm nozzle) spray the fixture from a distance of 3 meters.

6. IPX6 (Powerful Water Jet Test – 100L/min for 3 minutes)
High-pressure jets (utilizing a 12.5mm nozzle) strike the fixture from any direction—this is a rigorous test for outdoor and industrial lighting.

7. IPX7 (Immersion Test – 30 minutes in 1m deep water)
The fixture is completely submerged in water up to 1 meter deep for a duration of 30 minutes.

8. IPX8 (Continuous Submersion Test – Specified Depth & Time)
The fixture is submerged beyond 1 meter, with both depth and duration tailored for practical applications such as pool lighting.

9. IPX9K (High-Pressure & High-Temperature Water Test)
The fixture is subjected to high-pressure steam jets at 80°C, essential for settings like food processing facilities and industrial washdown areas.

These evaluations ensure that your lighting can endure whatever environmental conditions it encounters—ranging from light rain and heavy downpours to complete submersion in water.

The Importance of IP Testing for LED Lighting

1. It guarantees durability and safety in challenging conditions.

2. It validates adherence to industry regulations (IEC 60529).

3. It assesses resistance to dust, moisture, rain, and complete immersion when necessary.

IP ratings are essential for protecting LED lights from dust, moisture, and water damage.

No matter if you are lighting a living room, an outdoor space, or an industrial site, choosing the right IP rating ensures longevity, safety, and reliability.

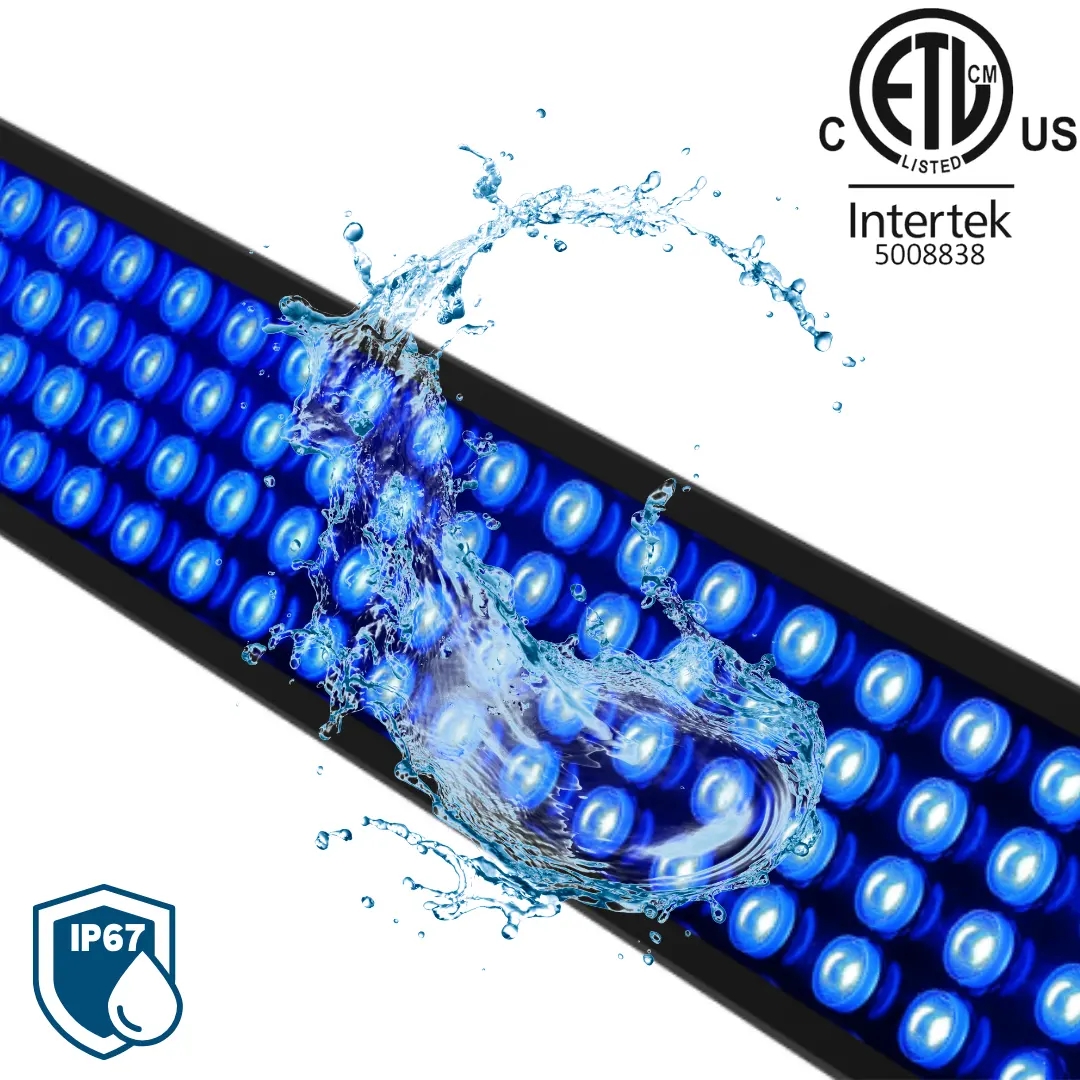

Rio Tinto IP67 rated ETL Listed DMX RGBW wall washer, RGBW LED flood light, DMX RGBW UFO high bay, DLC flood light, DLC grow lights and other DMX RGBW lighting solutions will enrich your life and buildings.
